4-channel 12-24V AC industrial receiver
Product number:
Classification:
Key words:
Product Introduction
4-channel 12-24V AC tubular receiver
Description

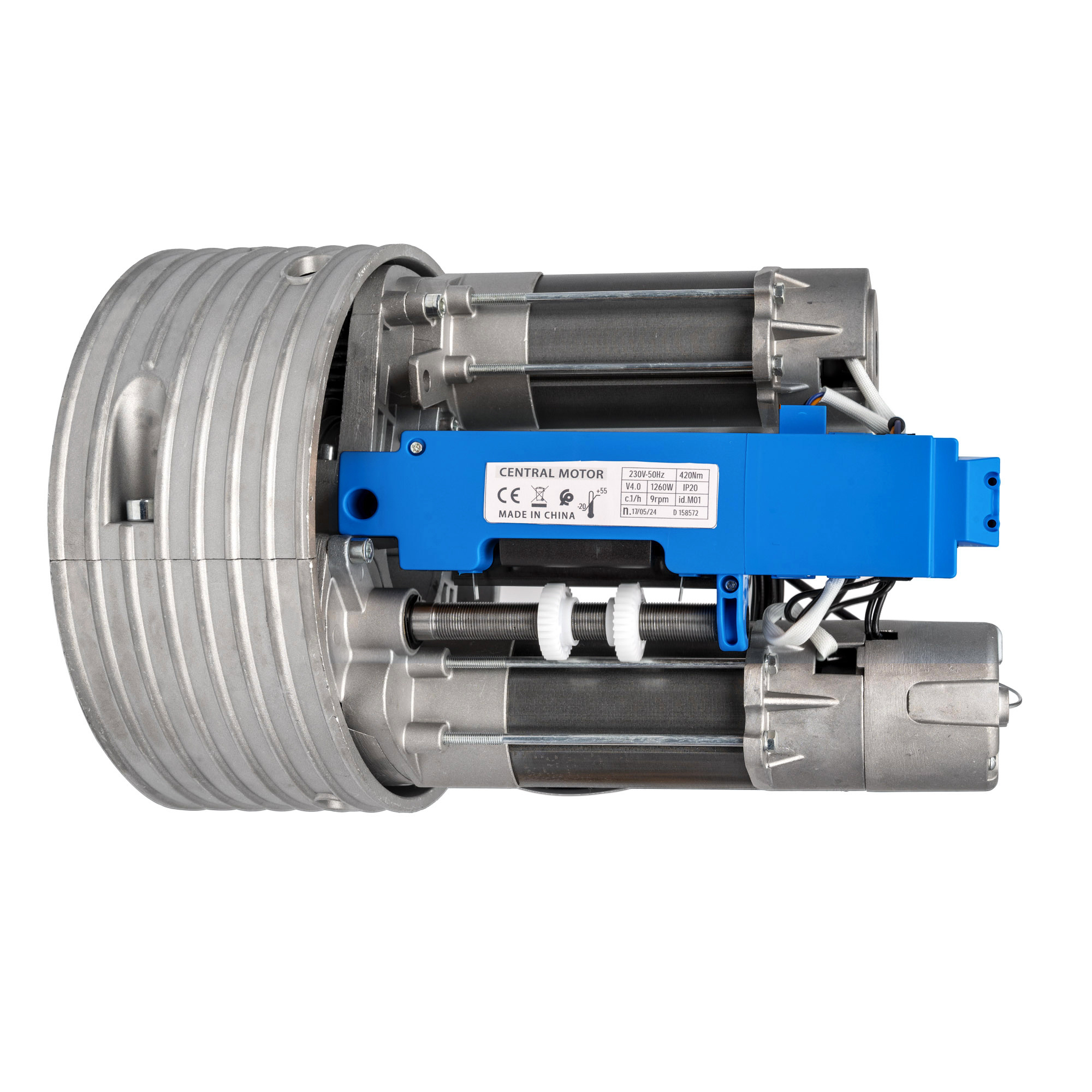

Application: Can be used for roller blinds, rolling doors, projection screens, pumps, conveyors, or other appliances and devices with AC motors. It can remotely control the AC motor to rotate forward or backward.
Wireless control, easy to install.

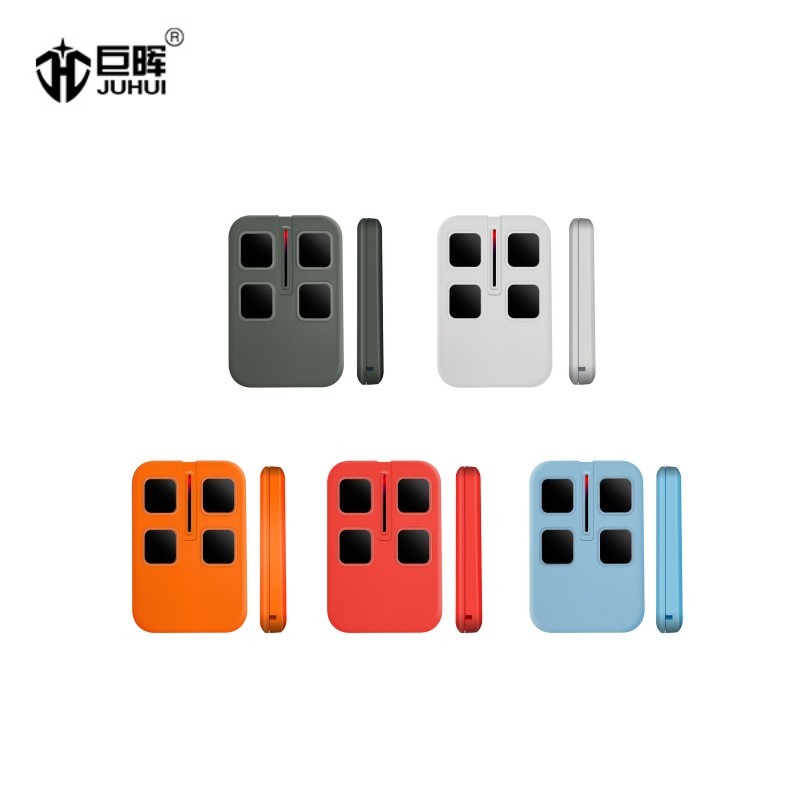

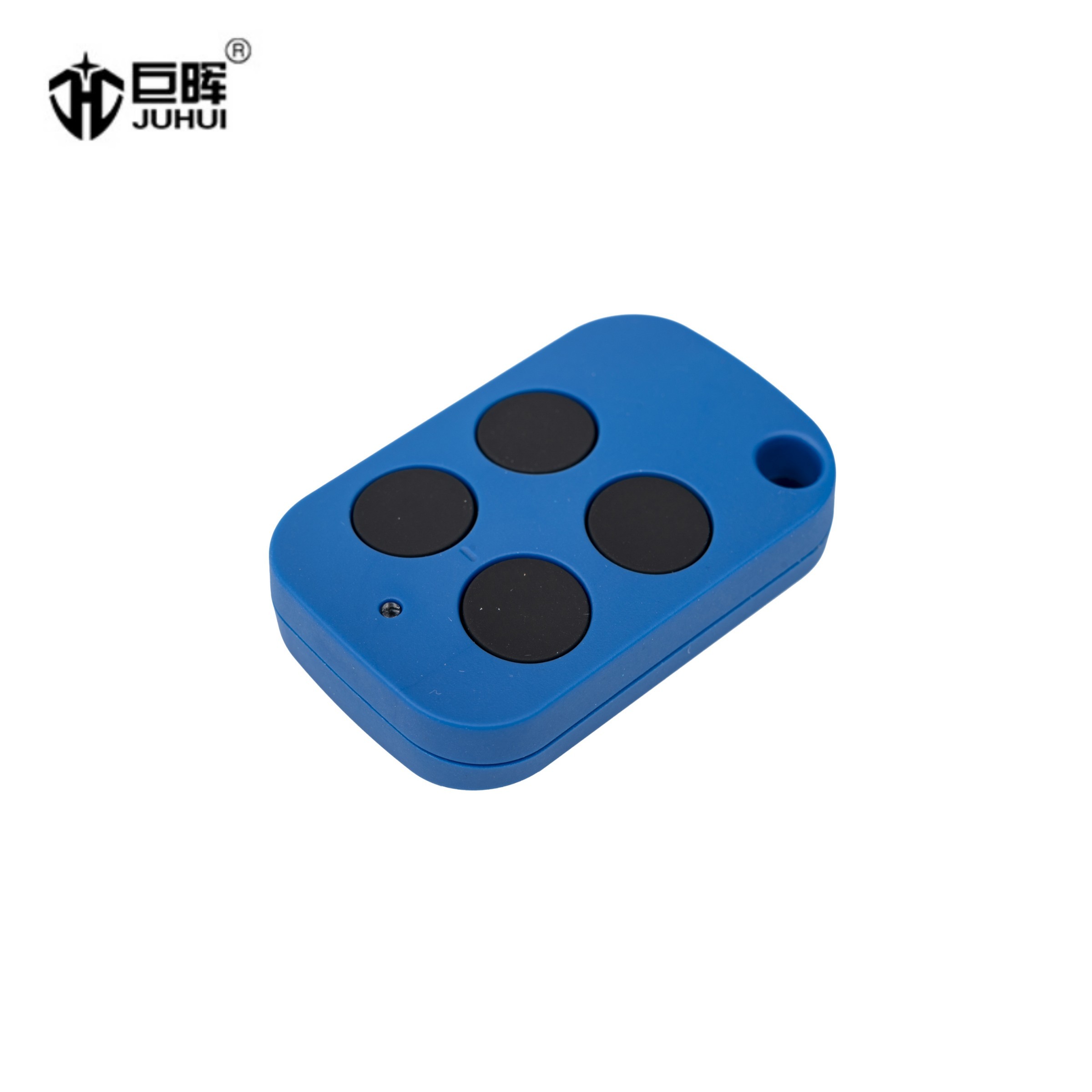

You can use the transmitter (remote control) to rotate the motor forward or backward from any position within a reliable distance.
RF wireless signals can pass through walls, floors, and doors.
Universal input: Supports AC110V (100V~120V) voltage, widely used in the USA, Canada... and AC220V (200V~240V) voltage, used in the UK, France.
You can use the transmitter (remote control) to turn the receiver on/off from anywhere within a reliable distance.
Wireless RF signals can pass through walls, floors, doors, or windows.
With reverse power protection and overcurrent protection.
Reliable control: The receiver only works with transmitters using the same code.
One/multiple transmitters can control one/multiple receivers simultaneously.
You can use two or more units in the same location.
1. Product technical parameters
Input voltage: AC220V Remote control distance ≥ 50 meters
2. Code reverse operation
● Code learning
Short press the 'LEARN' button and release it, the indicator light goes out, press any key on the remote control, the indicator light flashes for 3 seconds and then goes out, indicating successful code pairing.
● Remote coding learning
Press the first and second keys on the remote control simultaneously, the indicator light goes out, press any key on another remote control, the indicator light flashes for 3 seconds and then goes out, indicating successful remote distance code pairing.
● Delete code
In standby mode, long press the 'LEARN' button for about 10 seconds, the indicator light flashes for 3 seconds, and the deletion of the code is complete.
● Switch motor direction
Long press the 'LOCK' button on the remote control, the motor indicator light flashes, indicating successful motor direction switch.
